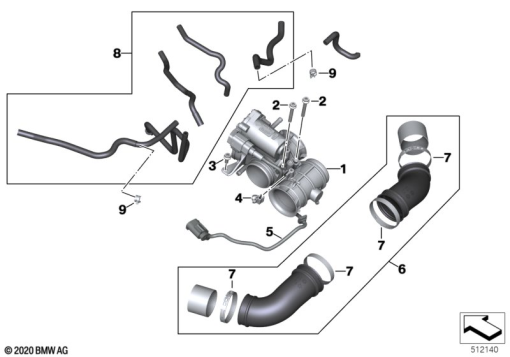

Parts List (9)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 13 71 8 413 118 | THROTTLE HOUSING ASSY | - | |
| 2 | 13 71 1 539 637 | SCREW - M6X45 | - | |
| 3 | 13 71 1 539 638 | SCREW - M6X16 | - | |
| 4 | 61 13 9 200 225 | CABLE STRAP WITH BRACKET - L=200MM | - | |
| 5 | 12 51 1 542 511 | THROTTLE WIRING HARNESS | - | |
| 6 | 13 71 7 923 522 | SET: SET, INTAKE SNORKEL | - | |
| 7 | 13 71 9 444 737 | SCREW CLAMP - 40-60 | - | |
| 8 | 13 71 7 923 523 | SET: SET, HOSES, DIFFERENTIATED INTAKE SYSTEM | - | |
| 9 | 17 12 8 619 462 | SPRING RING SHELL - 12,5MM | - |
