R18 Classic (K34) | Fuel Preparation

AIR DUCT, INTAKE SILENCER

Diagram #13_2346 | 3 parts

100%

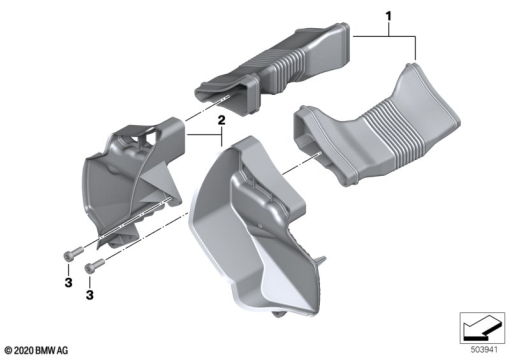

R18 Classic (K34) AIR DUCT, INTAKE SILENCER exploded view parts diagram

Parts List (3)

#Part NumberDescriptionQty
1
13 71 7 923 525
SET: SET, HOSE BELLOWS1
2
13 71 7 923 526
SET: SET OF MOUNTING BASES, FRONT1
3
07 12 9 905 494
ISA SCREW - M6X16-8.8-ZNS31
