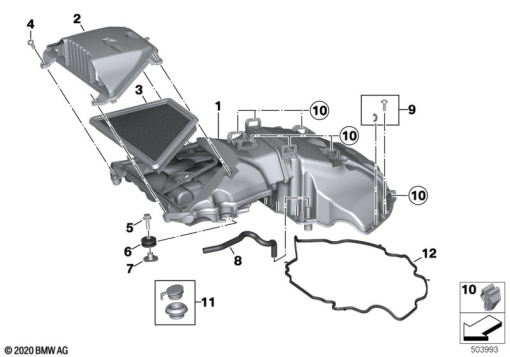

Parts List (12)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 13 71 8 410 688 | INTAKE MUFFLER, TOP | - | |
| 2 | 13 71 8 412 112 | SERVICE CAP, AIR FILTER | - | |
| 3 | 13 71 8 411 061 | AIR CLEANER | - | |
| 4 | 07 14 6 988 531 | OVAL-HEAD SCREW WITH WASHER - ISA M5X10 | - | |
| 5 | 07 11 9 905 546 | HEXAGON SCREW WITH FLANGE - M6X20 | - | |
| 6 | 46 63 1 451 277 | RUBBER GROMMET | - | |
| 7 | 46 63 1 451 275 | BUSH - 25X6.4X10-ZNS3 | - | |
| 8 | 13 71 8 414 409 | HOSE, INTAKE SILENCER | - | |
| 9 | 13 71 7 923 524 | SET: SET, INTAKE SILENCER SCREWS/CLIPS | - | |
| 10 | 07 14 8 542 040 | MOUNTING CLIP | - | |
| 11 | 13 71 7 923 527 | SET: SET, CRANKCASE VENTILATION | - | |
| 12 | 13 71 8 413 361 | SEAL, INTAKE SILENCER | - |
