R18 Classic (K34) | Front Suspension

FORK BRACE, BOTTOM/TOP

Diagram #31_1904 | 19 parts

100%

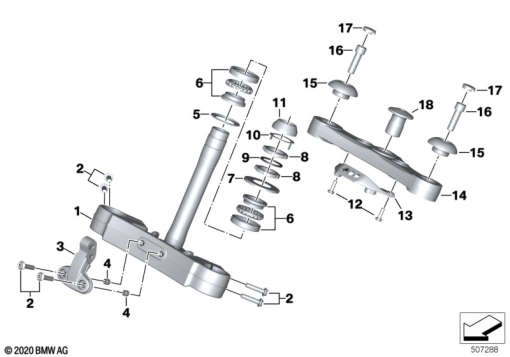

R18 Classic (K34) FORK BRACE, BOTTOM/TOP exploded view parts diagram

Parts List (19)

#Part NumberDescriptionQty
1
31 42 9 829 938
LOWER FORK CROSS BRACE - BLACK-
2
07 12 9 907 380
ISA SCREW - M8X35-8.8-ZNNIV-
3
31 42 9 899 201
HOLDER HEADLIGHT - BLACK-
4
11 12 1 726 238
DOWEL - D=10,5MM-
5
31 42 8 548 984
WASHER-GASKET-
6
31 42 8 548 780
BEARING-
7
31 42 8 554 057
WASHER-GASKET-
8
31 42 8 549 401
GROOVE NUT-
9
31 42 8 548 983
RUBBER WASHER-
10
31 42 8 549 411
SECURING PLATE-
11
31 42 9 898 304
CENTERING RING-
12
07 12 9 907 402
FILLISTER-HEAD SCREW - M6X20-8.8-ZNNIV-
13
31 42 9 443 520
BRACKET F INSTRUMENT CLUSTER-
14
31 42 9 899 206
UPPER FORK CROSS BRACE - BLACK (to 06/22)-
31 42 7 108 538
UPPER FORK CROSS BRACE - BLACK (to 05/23)Alternative for position 14-
31425A70B13
FORK BRIDGE UPPER - BLACKAlternative for position 14-
15
31 42 9 898 299
31 42 9 898 2992
16
07 12 9 909 265
TORX SCREW - M12X40-8.8-MK-
18
31 42 8 549 243
SCREW - M28X1,5-

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
