R18 Classic (K34) | Front Suspension

TELESCOPIC FORK, SINGLE PARTS

Name: Dapper Motor
Address: Haarlem, Noord-Holland, NL
Telephone: +31232077747
Price range: €€€

Diagram #31_1906 | 17 parts

100%

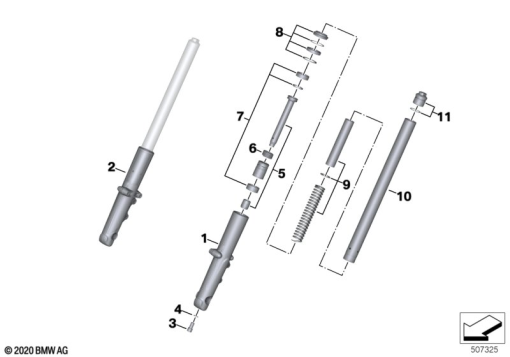

R18 Classic (K34) TELESCOPIC FORK, SINGLE PARTS exploded view parts diagram

Parts List (17)

#	Part Number	Description	Qty
1	31 42 8 395 611	SLIDER TUBE LEFT - BLACK (to 12/21)	-
4	07 12 9 908 415	FILLISTER-HEAD SCREW - M8X20-8.8-MK (to 12/21)	-
-	31 42 7 105 803	SLIDER TUBE LEFT - BLACK	-
4	46 63 9 908 452	FILLISTER-HEAD SCREW - M8X30-8.8-MK	-
-	31 42 8 395 612	SLIDER TUBE RIGHT - BLACK (to 12/21)	-
4	07 12 9 908 415	FILLISTER-HEAD SCREW - M8X20-8.8-MK (to 12/21)	-
-	31 42 7 105 804	SLIDER TUBE RIGHT - BLACK	-
4	46 63 9 908 452	FILLISTER-HEAD SCREW - M8X30-8.8-MK	-
-	07 14 9 444 823	FILLISTER-HEAD SCREW - M14X1.25X17-8.8	-
4	31 42 9 480 471	GASKET	-
5	31 42 9 443 842	SET: SET, DAMPER UNIT	-
6	31 42 9 444 071	COMPRESSION SPRING	-
7	31 42 9 443 841	SET: SET OF GUIDE ELEMENTS	-
8	31 42 9 443 840	SET: SET OF GASKETS	-
9	31 42 9 443 839	SET: SPRING SET	-
10	31 42 9 480 466	STANCHION	-
11	31 42 9 480 465	COVER LID	-

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
