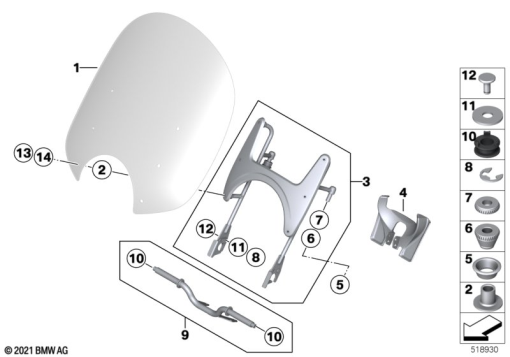

Parts List (22)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 63 9 480 730 | WINDSHIELD | - | |
| 2 | 46 63 7 724 481 | FLANGE SLEEVE, STEEL - L=7MM | - | |
| - | 46 63 8 527 780 | BODY SCREW WITHOUT SHOULDER - M5X20-A2-70 | - | |
| 2 | 46 63 2 882 640 | BUSH - LANG | - | |
| - | 46 63 8 534 939 | BODY SCREW WITHOUT SHOULDER - M5X25 | - | |
| 3 | 46 63 9 446 384 | BRACKET FOR WINDSHIELD - BLACK | - | |
46 63 9 480 728 | BRACKET FOR WINDSHIELD - CHROMAlternative for position 3 | - | ||
| 4 | 46 63 1 542 104 | WIND DEFLECTOR | - | |
| 5 | 46 63 9 480 727 | PUSH-TO-CONNECT NOZZLE | - | |
| 6 | 46 63 7 924 131 | TAPER | - | |
| 7 | 46 63 7 924 132 | COUNTER NUT | - | |
| 8 | 46 63 7 924 135 | C-CLIP | - | |
| 9 | 46 63 1 543 062 | WINDSHIELD HOLDER, BOTTOM - BLACK | - | |
46 63 1 543 061 | WINDSHIELD HOLDER, BOTTOM - CHROMAlternative for position 9 | - | ||
| 10 | 46 63 7 924 130 | GROMMET | - | |
| 11 | 46 63 7 924 134 | WASHER | - | |
| 12 | 46 63 7 924 133 | 46 63 7 924 133 | 2 | |
| 13 | 46 63 8 534 939 | BODY SCREW WITHOUT SHOULDER - M5X25 | - | |
| - | 46 63 2 882 640 | BUSH - LANG | - | |
| 13 | 46 63 8 527 780 | BODY SCREW WITHOUT SHOULDER - M5X20-A2-70 | - | |
| - | 46 63 7 724 481 | FLANGE SLEEVE, STEEL - L=7MM | - | |
| 14 | 07 14 9 467 628 | RUBBER GROMMET | - |
