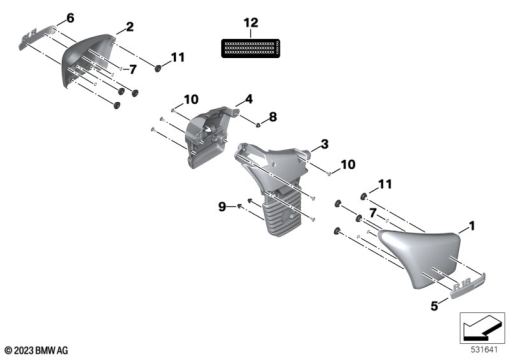

Parts List (14)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 63 9 445 051 | SIDE COVER LEFT - ROHTEIL / BLANK | - | |
| 2 | 46 63 9 445 052 | SIDE COVER RIGHT - ROHTEIL / BLANK | - | |
| 3 | 46 63 9 480 687 | SUPPORT, SIDE COVER, LEFT | - | |
| 4 | 46 63 9 480 688 | SUPPORT, SIDE COVER, RIGHT | - | |
| 5 | 46 63 9 480 693 | INSCRIPTION, SIDE COVER, LEFT | - | |
46 63 9 829 365 | INSCRIPTION, SIDE COVER, LEFTAlternative for position 5 | - | ||
| 6 | 46 63 9 480 694 | SIDE COVER INSCRIPTION, RIGHT | - | |
46 63 9 829 366 | SIDE COVER INSCRIPTION, RIGHTAlternative for position 6 | - | ||
| 7 | 07 14 9 239 251 | AXIAL SECURING CLIP | - | |
| 8 | 46 63 8 537 920 | SNAP-LOCK COUPLING - 7MM | - | |
| 9 | 46 63 8 537 920 | SNAP-LOCK COUPLING - 7MM | - | |
| 10 | 46 63 8 534 943 | BODY SCREW WITHOUT SHOULDER - M5X14 MK | - | |
| 11 | 46 63 1 453 144 | RUBBER GROMMET | - | |
| 12 | 71 21 9 829 424 | INSTRUCTION NOTICE, PAYLOAD | - |
