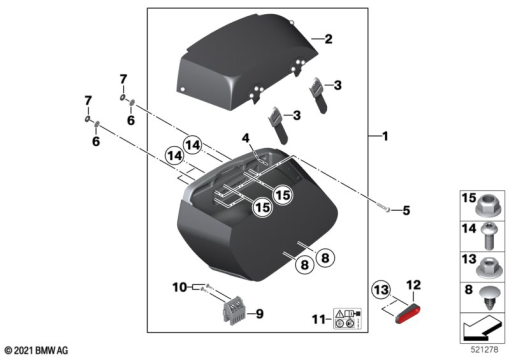

Parts List (19)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 54 8 414 477 | SOFTBAG, LEFT | - | |
46 54 8 414 478 | SOFTBAG, RIGHTAlternative for position 1 | - | ||
| 2 | 46 54 9 829 137 | COVER, SOFT BAG, LEFT | - | |
46 54 9 829 138 | COVER, SOFT BAG, RIGHTAlternative for position 2 | - | ||
| 3 | 46 54 9 829 139 | FASTENING STRAP, LEFT | - | |
46 54 9 829 140 | FASTENING STRAP, RIGHTAlternative for position 3 | - | ||
| 4 | 46 54 9 829 166 | INNER POCKET SOFT BAG | - | |
| 5 | 07 12 9 907 830 | FILLISTER-HEAD SCREW - M8X45-8.8-MK-ZN | - | |
07 12 9 908 467 | FILLISTER-HEAD SCREW - M8X25-8.8-MKAlternative for position 5 | - | ||
| 6 | 46 54 9 480 603 | BUSH | - | |
| 7 | 46 62 9 480 716 | GROMMET | - | |
| 9 | 46 54 9 829 141 | SUPPORT BUFFER | - | |
| 10 | 46 63 8 550 994 | BODY SCREW WITHOUT SHOULDER - M5X20 MK | - | |
| 11 | 71 21 9 829 347 | SIGN CASE TOPCASE | - | |
| 12 | 63 14 9 443 187 | REFLECTOR, RED, LEFT | - | |
63 14 9 443 188 | REFLECTOR, RED, RIGHTAlternative for position 12 | - | ||
| 13 | 51 41 9 147 409 | HEX NUT - M4 | - | |
| 14 | 07 12 9 908 404 | FILLISTER-HEAD SCREW - M6X16-8.8 MK | - | |
| 15 | 07 11 9 905 949 | HEX NUT WITH PLATE - M6-8-ZNNIV SI | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
