R18 Classic (K34) | Frame, Fairing, Cases

BRACKET, SOFTBAG

Diagram #46_2320 | 3 parts

100%

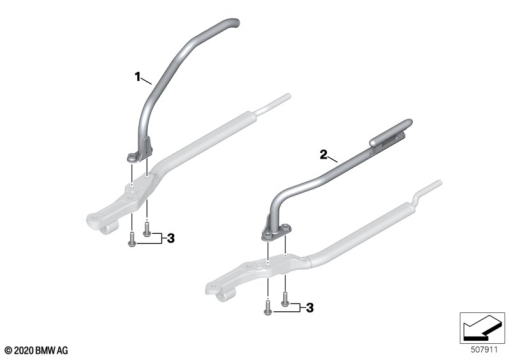

R18 Classic (K34) BRACKET, SOFTBAG exploded view parts diagram

Parts List (3)

#Part NumberDescriptionQty
1
46 54 9 480 606
BRACKET, SOFTBAG, RIGHT1
2
46 54 9 480 605
BRACKET, SOFTBAG, LEFT1
3
07 12 9 908 467
FILLISTER-HEAD SCREW - M8X25-8.8-MK1
