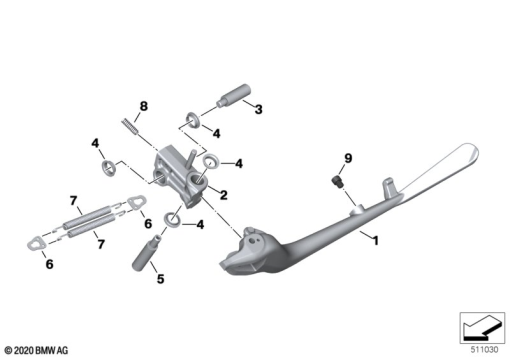

Parts List (14)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 53 1 541 269 | SIDE STAND - BLACK | - | |
46 53 9 899 212 | SIDE STAND - BLACKAlternative for position 1 | - | ||
| - | 46 71 9 467 714 | FOOTREST PLATE, LEFT - BLACK | - | |
| 1 | 46 53 1 541 269 | SIDE STAND - BLACK | - | |
31 42 8 537 724 | STOP BUFFER - 7,5X12Alternative for position 1 | - | ||
| - | 46 71 9 467 714 | FOOTREST PLATE, LEFT - BLACK | - | |
| 2 | 46 53 9 899 215 | SUPPORTING BRACKET F SIDE STAND | - | |
| 3 | 46 53 9 443 378 | THREADED BOLT | - | |
| 4 | 46 53 7 679 105 | COLLAR BUSH | - | |
| 5 | 46 53 9 899 214 | THREADED BOLT | - | |
| 6 | 46 53 1 541 761 | HOLDER, SPRING, SIDE STAND | - | |
| 7 | 46 53 1 541 760 | TENSION SPRING, SIDE STAND | - | |
| 8 | 46 71 9 467 886 | SPRING | - | |
| 9 | 31 42 8 537 724 | STOP BUFFER - 7,5X12 | - |
