R18 Classic (K34) | Frame, Fairing, Cases

REAR FRAME

Diagram #46_2326 | 4 parts

100%

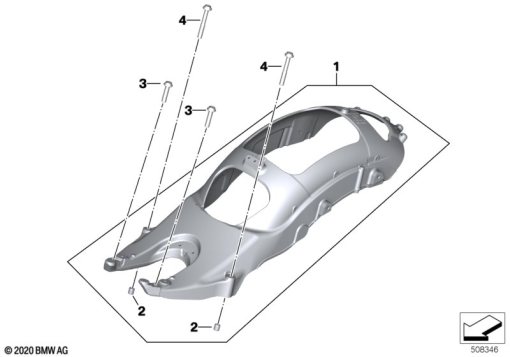

R18 Classic (K34) REAR FRAME exploded view parts diagram

Parts List (4)

#Part NumberDescriptionQty
1
46 51 7 105 814
REAR FRAME1
2
07 14 1 642 512
DOWEL - 12,5X10,5X13,51
3
07 12 9 909 585
FILLISTER-HEAD SCREW - M10X40-10.91
4
07 12 9 909 651
FILLISTER-HEAD SCREW - M10X701
