R18 Classic (K34) | Frame, Fairing, Cases

MUDGUARD, SPRING STRUT

Diagram #46_2315 | 2 parts

100%

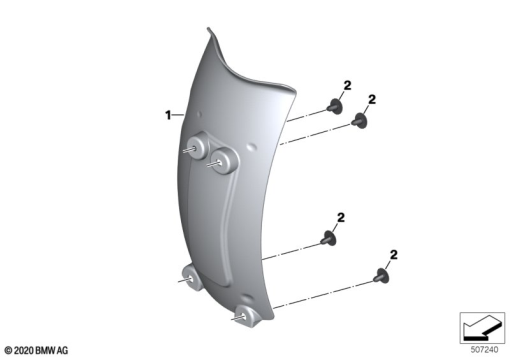

R18 Classic (K34) MUDGUARD, SPRING STRUT exploded view parts diagram

Parts List (2)

#Part NumberDescriptionQty
1
46 62 9 480 718
MUDGUARD, SPRING STRUT1
2
51 16 8 197 908
EXPANDING RIVET1
