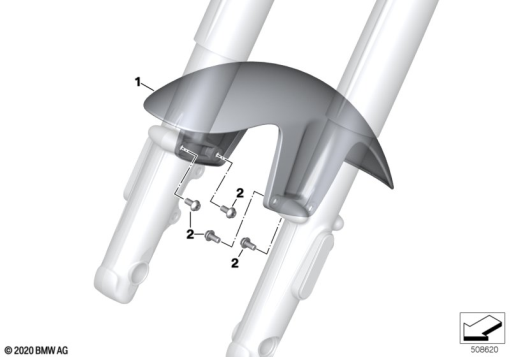

Parts List (19)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 61 1 542 517 | FRONT WHEEL FENDER - BLACKSTORM MET. | - | |
| 4 | 07 12 9 908 415 | FILLISTER-HEAD SCREW - M8X20-8.8-MK | - | |
| - | 46 61 9 444 732 | FRONT WHEEL FENDER - KTL | - | |
| - | 46 61 7 925 201 | FRONT WHEEL FENDER - MANHATTAN MET | - | |
| 4 | 07 12 9 908 415 | FILLISTER-HEAD SCREW - M8X20-8.8-MK | - | |
| - | 46 61 7 105 027 | FRONT WHEEL FENDER - GALAXY DUST | - | |
| - | 46 61 7 925 200 | FRONT WHEEL FENDER - MARS-RED | - | |
| 4 | 07 12 9 908 415 | FILLISTER-HEAD SCREW - M8X20-8.8-MK | - | |
| - | 46 61 7 105 028 | FRONT WHEEL FENDER - MINERALWHITE | - | |
| - | 46 63 9 908 452 | FILLISTER-HEAD SCREW - M8X30-8.8-MK | - | |
| - | 31 42 7 105 801 | FORK LEG LEFT - BLACK | - | |
| - | 31 42 7 105 802 | FORK LEG RIGHT - BLACK | - | |
| - | 31 42 7 105 803 | SLIDER TUBE LEFT - BLACK | - | |
| - | 31 42 7 105 804 | SLIDER TUBE RIGHT - BLACK | - | |
| - | 07 12 9 908 415 | FILLISTER-HEAD SCREW - M8X20-8.8-MK | - | |
| - | 31 42 8 395 609 | FORK LEG LEFT - BLACK | - | |
| - | 31 42 8 395 610 | FORK LEG RIGHT - BLACK | - | |
| - | 31 42 8 395 611 | SLIDER TUBE LEFT - BLACK | - | |
| - | 31 42 8 395 612 | SLIDER TUBE RIGHT - BLACK | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
