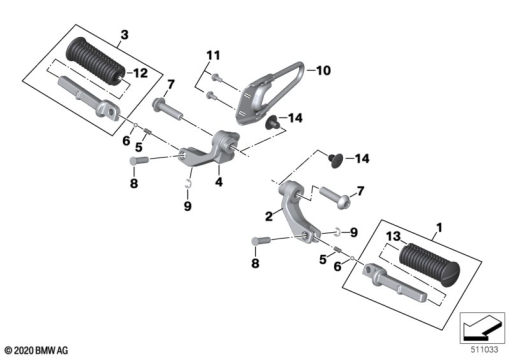

Parts List (16)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 71 9 444 651 | FOOTREST, REAR LEFT | - | |
| 2 | 46 71 9 467 717 | FOOTREST PLATE, REAR LEFT - BLACK | - | |
| - | 07 12 9 909 676 | FILLISTER-HEAD SCREW - M12X45 MK | - | |
| 3 | 46 71 9 444 652 | FOOTREST, REAR RIGHT | - | |
| 4 | 46 71 9 467 716 | FOOTREST PLATE, REAR RIGHT - BLACK | - | |
| - | 07 12 9 909 676 | FILLISTER-HEAD SCREW - M12X45 MK | - | |
| 5 | 46 71 8 392 689 | COMPRESSION SPRING | - | |
| 6 | 07 11 9 905 155 | BALL - 6,35MM | - | |
| 7 | 07 12 9 909 676 | FILLISTER-HEAD SCREW - M12X45 MK | - | |
| 8 | 46 71 9 467 887 | PIN - D=9.5MM | - | |
| 9 | 07 11 9 903 797 | CIRCLIP | - | |
07 11 9 909 948 | CIRCLIPAlternative for position 9 | - | ||
| 10 | 46 71 8 392 688 | HEEL DEFLECTOR | - | |
| 11 | 07 12 9 907 404 | FILLISTER-HEAD SCREW - M6X12-8.8-ZNNIV | - | |
| 12 | 46 71 9 444 654 | RUBBER FOOTREST | - | |
| 13 | 46 71 9 444 653 | RUBBER FOOTREST | - |
