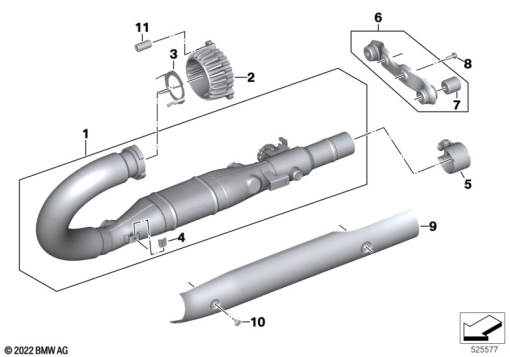

Parts List (13)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 18 51 9 444 785 | EXHAUST MANIFOLD, LEFT - CHROM | - | |
18 51 9 444 786 | EXHAUST MANIFOLD, RIGHT - CHROMAlternative for position 1 | - | ||
| 2 | 18 51 9 444 771 | STAR-SHAPED NUT - CHROM | - | |
| 3 | 18 51 8 413 915 | GASKET | - | |
| 4 | 46 63 7 694 548 | C-CLIP NUT, SELF-LOCKING - M5 | - | |
| 5 | 18 51 9 829 595 | CLAMP - D48.5 | - | |
| 6 | 18 51 8 413 941 | CARRIER | - | |
| 7 | 18 21 1 342 283 | RUBBER MOUNTING | - | |
| 8 | 07 12 9 907 403 | FILLISTER-HEAD SCREW - M6X16-8.8-ZNNIV | - | |
| 9 | 18 51 9 444 777 | COVERING LEFT - CHROM | - | |
18 51 9 444 778 | COVERING RIGHT - CHROMAlternative for position 9 | - | ||
| 10 | 18 51 8 529 128 | BODY SCREW WITHOUT SHOULDER - M5X10-A2-70 | - | |
| 11 | 18 51 9 829 509 | 18 51 9 829 509 | 4 |
