Parts List (19)

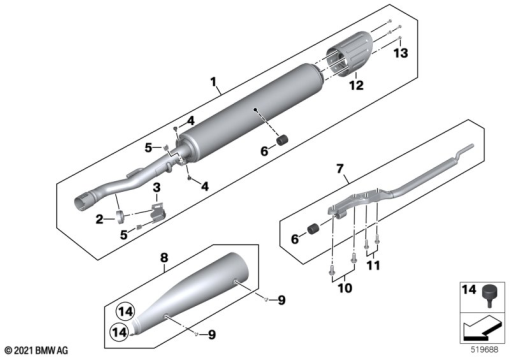

| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 18 51 9 467 673 | MUFFLER, LEFT - CHROM | - | |
18 51 9 467 674 | MUFFLER, RIGHT - CHROMAlternative for position 1 | - | ||
| 2 | 64 12 1 382 617 | HOSE CLAMP | - | |
| 3 | 18 51 1 539 983 | BRACKET FOR TRIM, LEFT | - | |
18 51 1 539 984 | BRACKET FOR TRIM, RIGHTAlternative for position 3 | - | ||
| 4 | 18 12 7 651 065 | STOP BUFFER - D12X6 | - | |
| 5 | 46 63 7 694 548 | C-CLIP NUT, SELF-LOCKING - M5 | - | |
| 6 | 18 21 1 342 283 | RUBBER MOUNTING | - | |
| 7 | 18 51 8 413 959 | SUPPORT, END MUFFLER - LEFT | - | |
18 51 8 413 960 | SUPPORT, END MUFFLER - RIGHTAlternative for position 7 | - | ||
| 8 | 18 51 9 444 781 | TRIM, REAR SILENCER, LEFT | - | |
18 51 9 444 782 | TRIM, REAR SILENCER, RIGHTAlternative for position 8 | - | ||
| 9 | 18 51 8 529 128 | BODY SCREW WITHOUT SHOULDER - M5X10-A2-70 | - | |
| 10 | 07 12 9 908 279 | FILLISTER-HEAD SCREW - M10X25-8.8-MK | - | |
| 11 | 07 12 9 908 467 | FILLISTER-HEAD SCREW - M8X25-8.8-MK | - | |
| 12 | 18 51 9 457 152 | END CAP - CHROM | - | |
| - | 07 11 9 909 852 | SCREW - M5X12 | - | |
| 13 | 07 11 9 909 852 | SCREW - M5X12 | - | |
| 14 | 07 14 7 105 593 | RUBBER BUFFER - D8X5 | - |
