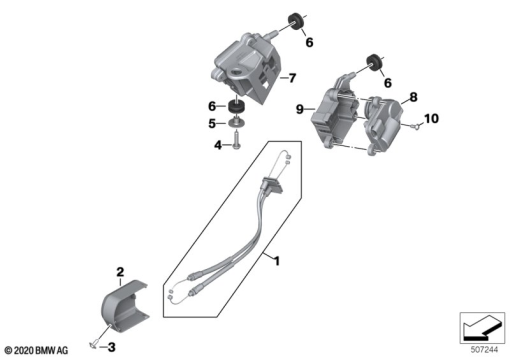

Parts List (10)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 18 51 7 923 528 | SET: KIT, BOWDEN CABLE, EXHAUST FLAP | - | |
| 2 | 18 51 8 413 817 | MUDGUARD | - | |
| 3 | 18 51 8 531 936 | BODY SCREW WITHOUT SHOULDER - M5X12-A2-70 | - | |
| 4 | 07 12 9 907 401 | ISA SCREW - M6X25-8.8-ZNNIV | - | |
| 5 | 46 63 1 451 275 | BUSH - 25X6.4X10-ZNS3 | - | |
| 6 | 46 63 1 451 277 | RUBBER GROMMET | - | |
| 7 | 18 51 9 444 736 | SUPPORT, RIGHT | - | |
| 8 | 18 51 9 443 059 | SERVO UNIT, EXHAUST FLAP | - | |
| 9 | 18 51 9 444 735 | SUPPORT, LEFT | - | |
| 10 | 07 14 7 194 471 | SCREW FOR PLASTIC - TS5X12-ZNS3 | - |
