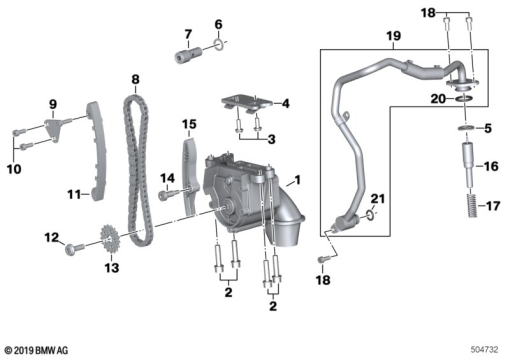

Parts List (21)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 41 8 409 783 | OIL PUMP | - | |
| 2 | 07 12 9 905 555 | ISA SCREW - M8X35-OU-8.8 | - | |
| 3 | 07 12 9 907 403 | FILLISTER-HEAD SCREW - M6X16-8.8-ZNNIV | - | |
| 4 | 11 11 8 394 728 | DIAPHRAGM VALVE | - | |
| 5 | 11 44 1 341 041 | BASE | - | |
| 6 | 07 11 9 963 200 | GASKET RING - A14X18-AL | - | |
| 7 | 11 51 1 342 248 | VENT SCREW | - | |
| 8 | 11 41 8 409 777 | CHAIN, OIL PUMP | - | |
| 9 | 11 41 8 409 776 | HOLDER | - | |
| 10 | 07 12 9 905 536 | ISA SCREW - M6X16-8.8-ZNNIV | - | |
| 11 | 11 41 7 108 046 | CHAIN TENSIONER | - | |
| 12 | 11 41 9 443 377 | SCREW - M8X25-10.9-LH | - | |
| 13 | 11 41 8 409 779 | SPROCKET | - | |
| 14 | 11 31 7 710 888 | SPACER BOLT - M6X16 | - | |
| 15 | 11 41 8 409 778 | CHAIN RAIL | - | |
| 16 | 11 41 1 342 761 | THERMOSTAT - 95CEL | - | |
| 17 | 11 44 1 342 571 | COMPRESSION SPRING | - | |
| 18 | 07 11 9 909 631 | SCREW - M6X16-10.9-MKL | - | |
| 19 | 17 22 8 409 965 | OIL COOLING PIPE | - | |
| 20 | 07 11 9 909 666 | O-RING - 20,22X3,53 | - | |
| 21 | 07 11 9 909 664 | O-RING - 12,37X2,26 | - |
