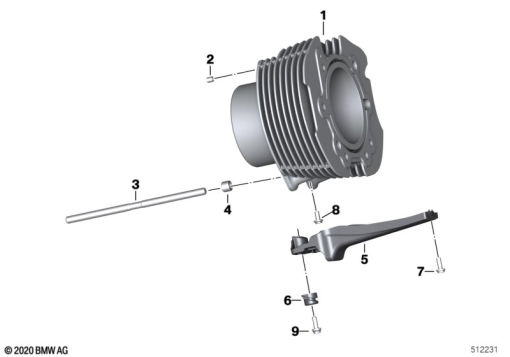

Parts List (12)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 11 8 409 827 | CYLINDER LEFT - BLACK | - | |
11 11 8 409 828 | CYLINDER RIGHT - BLACKAlternative for position 1 | - | ||
| 2 | 11 12 7 606 504 | DOWEL - D=7,5MM | - | |
| 3 | 11 11 8 409 794 | STUD - M10X210 | - | |
| 4 | 11 11 1 743 118 | DOWEL - D=14,5MM | - | |
| 5 | 11 11 8 409 753 | COVERING LEFT | - | |
11 11 8 409 754 | COVERING RIGHTAlternative for position 5 | - | ||
| 6 | 11 11 8 409 751 | BUSH | - | |
| 7 | 07 12 9 907 403 | FILLISTER-HEAD SCREW - M6X16-8.8-ZNNIV | - | |
| 8 | 11 11 9 457 622 | SCREW - M6X16 | - | |
| - | 11 11 8 409 828 | CYLINDER RIGHT - BLACK | - | |
| 9 | 07 12 9 907 404 | FILLISTER-HEAD SCREW - M6X12-8.8-ZNNIV | - |
