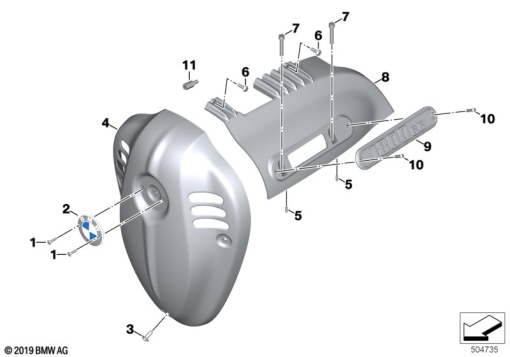

Parts List (14)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 07 11 9 909 718 | SCREW - M4X16-8.8-ZNNIV | - | |
| 2 | 16 11 9 480 679 | BADGE - D60 | - | |
| 3 | 46 63 8 568 782 | BODY SCREW WITHOUT SHOULDER - M6X16 | - | |
| 4 | 11 14 9 444 853 | COVER, FRONT - POLIERT | - | |
11 14 9 444 004 | COVER, FRONT - BLACKAlternative for position 4 | - | ||
11 14 9 444 854 | COVER, FRONT - CHROMAlternative for position 4 | - | ||
| 5 | 07 11 9 903 690 | DOWEL PIN - 4M6X10-A1 | - | |
| 6 | 07 12 9 907 412 | FILLISTER-HEAD SCREW - M5X16-8.8-ZNNIV | - | |
| 7 | 07 12 9 905 944 | SCREW - M6X35 | - | |
| 8 | 11 14 8 409 855 | COVERING LEFT - SILVER | - | |
11 14 8 409 856 | COVERING RIGHT - SILVERAlternative for position 8 | - | ||
| 9 | 11 11 9 443 320 | BADGE | - | |
| 10 | 11 14 9 446 333 | SCREW - M5X18 | - | |
| 11 | 07 14 8 836 008 | THREADED BOLT - M6X18 | - |
