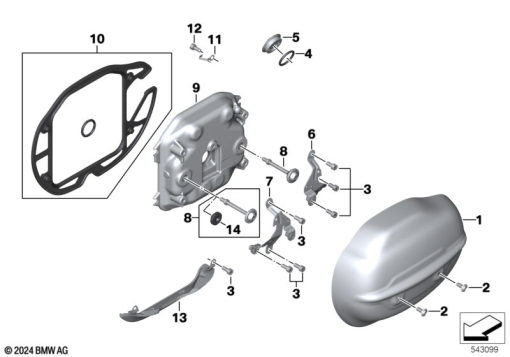

Parts List (26)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 12 7 923 611 | IGNITION COIL COVER, LEFT - BLACK | - | |
11 12 7 923 612 | IGNITION COIL COVER, RIGHT - BLACKAlternative for position 1 | - | ||
11 12 9 443 751 | IGNITION COIL COVER, LEFT - CHROMAlternative for position 1 | - | ||
11 12 9 443 752 | IGNITION COIL COVER, RIGHT - CHROMAlternative for position 1 | - | ||
11 12 8 409 877 | IGNITION COIL COVER, LEFT - POLIERTAlternative for position 1 | - | ||
11 12 8 409 878 | IGNITION COIL COVER, RIGHT - POLIERTAlternative for position 1 | - | ||
11 12 8 409 877 | IGNITION COIL COVER, LEFT - POLIERTAlternative for position 1 | - | ||
11 12 8 409 878 | IGNITION COIL COVER, RIGHT - POLIERTAlternative for position 1 | - | ||
| 2 | 46 63 8 568 782 | BODY SCREW WITHOUT SHOULDER - M6X16 | - | |
| 3 | 07 12 9 905 865 | ISA SCREW - M6X14 - 8.8 | - | |
| 4 | 07 11 9 904 950 | O-RING - 27X3,2 | - | |
| 5 | 11 12 8 526 288 | OIL COVER LID | - | |
| - | 07 11 9 904 950 | O-RING - 27X3,2 | - | |
| 6 | 11 12 9 467 616 | CARRIER | - | |
11 12 1 542 415 | CARRIERAlternative for position 6 | - | ||
| 7 | 11 12 9 467 617 | CARRIER | - | |
11 12 1 542 416 | CARRIERAlternative for position 7 | - | ||
| 8 | 11 12 7 698 958 | SCREW WITH BUSH | - | |
| 9 | 11 12 8 409 887 | ROCKER BOX COVER LEFT | - | |
11 12 8 409 888 | ROCKER BOX COVER RIGHTAlternative for position 9 | - | ||
| 10 | 11 12 7 923 313 | SET: GASKET KIT, CYLINDER HEAD COVERS | - | |
| 11 | 11 12 8 542 342 | CONTACT SPRING | - | |
| 12 | 07 12 9 905 865 | ISA SCREW - M6X14 - 8.8 | - | |
| 13 | 11 12 9 443 301 | PROTECTION, LEFT | - | |
11 12 9 443 302 | PROTECTION, RIGHTAlternative for position 13 | - | ||
| 14 | 11 12 7 654 978 | RUBBER BUSH | - |
