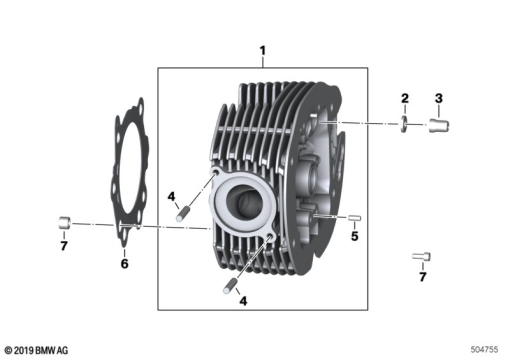

Parts List (9)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 12 8 409 881 | CYLINDER HEAD LEFT | - | |
11 12 8 409 882 | CYLINDER HEAD RIGHTAlternative for position 1 | - | ||
| 2 | 11 12 1 464 026 | WASHER - 10,5X20X3 | - | |
| 3 | 11 12 7 711 063 | NUT - M10X1,5 | - | |
| 4 | 07 12 9 903 964 | STUD BOLT - M8X40 | - | |
| 5 | 07 11 9 942 074 | DOWEL PIN - 6M6X14 | - | |
| 6 | 11 12 8 409 885 | CYLINDER HEAD GASKET - LEFT | - | |
11 12 8 409 886 | CYLINDER HEAD GASKET - RIGHTAlternative for position 6 | - | ||
| 7 | 11 11 1 743 118 | DOWEL - D=14,5MM | - |
