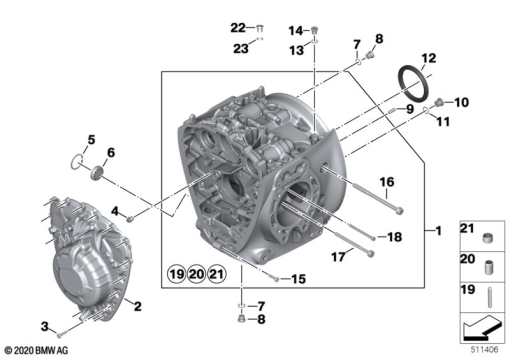

Parts List (26)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 11 9 832 057 | CRANKCASE - SILVER | - | |
11 11 9 831 973 | CRANKCASE - BLACKAlternative for position 1 | - | ||
| 2 | 11 14 8 409 867 | CRANKCASE COVER FRONT | - | |
| 3 | 07 11 9 907 160 | COUNTERSUNK SCREW - M6X25-8.8-ZNNIV | - | |
| 4 | 11 11 9 832 011 | VENT SCREW | - | |
| 5 | 07 11 9 906 782 | LOCK RING - 40X1,75-ZNS3 | - | |
| 6 | 11 11 8 523 921 | OIL-LEVEL CHECK | - | |
| 7 | 07 11 9 963 200 | GASKET RING - A14X18-AL (to 04/21) | - | |
07 11 9 963 226 | GASKET RING - A14X20-CUAlternative for position 7 | - | ||
| 8 | 11 11 8 550 006 | SCREW PLUG - M14X1.5 - AL | - | |
| 9 | 07 11 9 909 754 | DOWEL PIN - M6X20-A1 | - | |
| 10 | 07 11 9 902 292 | SCREW PLUG - M16X1,5 | - | |
| 11 | 07 11 9 963 252 | GASKET RING - A16X20-AL | - | |
| 12 | 11 11 8 409 787 | SHAFT SEAL | - | |
07 14 1 030 295 | SHAFT SEALAlternative for position 12 | - | ||
| 13 | 07 11 9 963 132 | GASKET RING - A12X16-CU | - | |
| 14 | 07 11 9 904 550 | SCREW PLUG - M12X1,5-ZNNIV | - | |
| 15 | 07 11 9 907 160 | COUNTERSUNK SCREW - M6X25-8.8-ZNNIV | - | |
| 16 | 11 11 8 409 811 | SCREW - M10X155 | - | |
| 17 | 11 11 8 409 812 | SCREW - M8X120 | - | |
| 18 | 07 12 9 907 544 | ISA SCREW - M6X80 | - | |
| 19 | 07 11 9 942 074 | DOWEL PIN - 6M6X14 | - | |
| 20 | 11 11 1 743 118 | DOWEL - D=14,5MM | - | |
| 21 | 11 11 1 280 594 | DOWEL - D=12,5MM | - | |
| 22 | 07 11 9 904 550 | SCREW PLUG - M12X1,5-ZNNIV | - | |
| 23 | 07 11 9 963 132 | GASKET RING - A12X16-CU | - |
