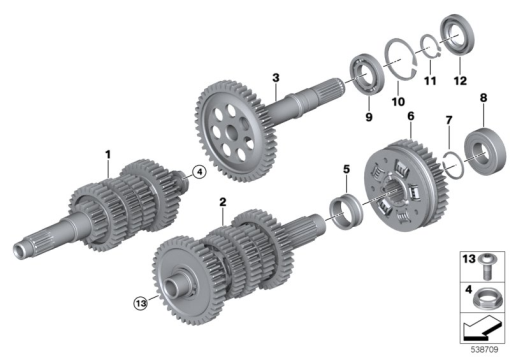

Parts List (13)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 23 00 1 542 867 | DRIVE SHAFT | 1 | |
| 2 | 23 00 1 542 877 | INTERMEDIATE SHAFT | 1 | |
| 3 | 23 00 7 923 933 | OUTPUT SHAFT | 1 | |
| 4 | 23 00 8 528 051 | COLLAR NUT - M20X1,5 | 1 | |
| 5 | 23 00 7 109 389 | SPACER SLEEVE | 1 | |
| 6 | 23 00 7 109 379 | JERK DAMPER | 1 | |
| 7 | 07 11 9 909 720 | SNAP RING - 29 | 1 | |
| 8 | 23 00 7 923 165 | GROOVED BALL BEARING - 25X52X15 | 1 | |
| 9 | 23 00 1 542 937 | GROOVED BALL BEARING - 25X47X8 | 1 | |
| 10 | 07 11 9 906 808 | LOCK RING - 47X1,75 | 1 | |
| 11 | 23 00 9 444 702 | LOCK RING - 25X2 | 1 | |
| 12 | 36 31 8 561 712 | SHAFT SEAL - AS25X47X7 | 1 | |
| 13 | 07 14 9 128 051 | TORX-BOLT WITH WASHER - ISA M5X10 | 1 |
