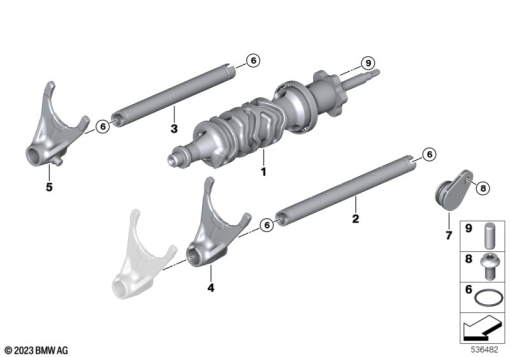

Parts List (9)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 23 00 1 542 897 | SHIFTING ROLL | 1 | |
| 2 | 23 00 1 542 903 | SHIFTING RAIL - 1/3UND2/4 GANG | 1 | |
| 3 | 23 00 1 542 905 | SHIFTING RAIL - 5/6 GANG | 1 | |
| 4 | 23 00 1 542 902 | SHIFTING FORK - 1/4UND2/3 GANG | 1 | |
| 5 | 23 00 1 542 904 | SHIFTING FORK - 5/6 GANG | 1 | |
| 6 | 07 11 9 909 772 | O-RING - 12X1-N-NBR 70 | 1 | |
| 7 | 23 00 7 923 946 | SEALING CAP | 1 | |
| 8 | 07 12 9 909 849 | FILLISTER-HEAD SCREW - M6X12-8.8-MKL | 1 | |
| 9 | 07 11 9 903 211 | DOWEL PIN - 4M6X10-ST | 1 |
