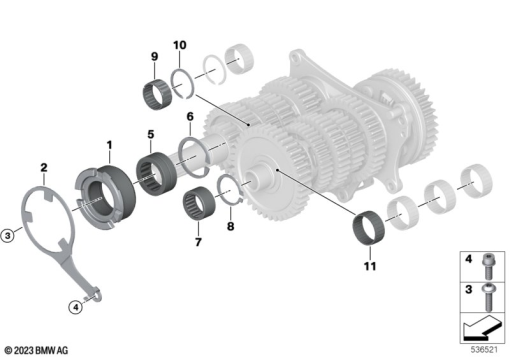

Parts List (11)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 23 00 1 542 874 | SUPPORT | - | |
| 2 | 23 00 7 924 288 | ADJUST-LEVER | - | |
| 3 | 07 12 9 907 281 | ISA SCREW - M5X20 | - | |
| 4 | 07 12 9 905 120 | ISA SCREW - M5X16-U1-8.8 | - | |
| 5 | 23 00 1 542 875 | NEEDLE BEARING - 30X42X17 | - | |
| 6 | 07 11 9 905 077 | LOCK RING - 42X1,75 | - | |
| 7 | 23 00 1 542 936 | NEEDLE BEARING - 25X32X16 | - | |
| 8 | 31 35 7 750 791 | LOCK RING - 30X1,5 DIN471 | - | |
| 9 | 23 00 8 569 894 | NEEDLE ROLLER AND CAGE ASSEMBLY - 26X30X13 | - | |
| 10 | 07 11 9 909 720 | SNAP RING - 29 | - | |
| 11 | 23 00 8 569 921 | NEEDLE ROLLER AND CAGE ASSEMBLY - 30X34X13 | - |
