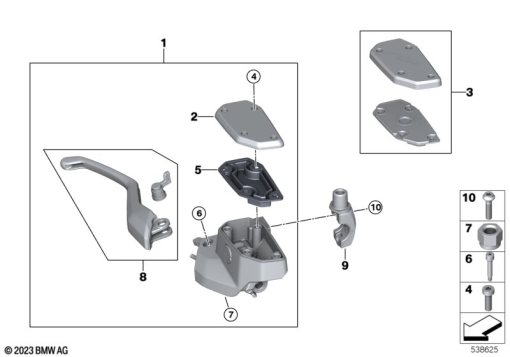

Parts List (15)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 32 72 1 643 679 | HANDBRAKE LEVER | - | |
32 72 1 661 086 | HANDBRAKE LEVERAlternative for position 1 | - | ||
32 72 1 661 072 | HANDBRAKE LEVERAlternative for position 1 | - | ||
| 2 | 32 72 1 657 239 | COVER HANDLEBAR FITTING | - | |
| 3 | 32725A818D9 | SET: KIT, COVER | - | |
| 4 | 07 12 9 904 977 | SCREW TORX DRIVE - M4X12 | - | |
| 5 | 32 72 1 657 237 | RUBBER COVER | - | |
| 6 | 32 72 1 659 464 | SCREW | - | |
| 7 | 32 72 7 680 378 | SELF-LOCKING HEX NUT - M5-A2-70 | - | |
| 8 | 32725A76191 | SET: SET PARKING BRAKE LEVER | - | |
32725A76195 | SET: KIT BRAKE LEVER ENDUROAlternative for position 8 | - | ||
32725A76192 | SET: KIT BRAKE LEVER SHADOWAlternative for position 8 | - | ||
| 9 | 32 72 1 659 407 | PIPE CLAMP | - | |
32 72 1 659 418 | PIPE CLAMPAlternative for position 9 | - | ||
| 10 | 07 12 9 907 400 | ISA SCREW - M6X30-8.8-ZNNIV | - |
