R1300GS 22 (KA1) | Steering

STEERING DAMPER

Diagram #32_2992 | 4 parts

100%

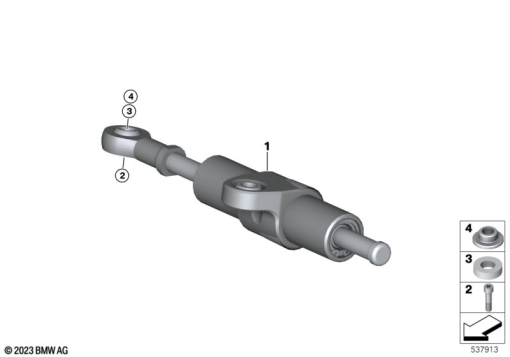

R1300GS 22 (KA1) STEERING DAMPER exploded view parts diagram

Parts List (4)

#Part NumberDescriptionQty
1
32 76 7 106 136
STEERING DAMPER1
2
07 12 9 909 834
ISA SCREW - M8X35-8.8-MKL1
3
31 42 7 677 987
RING - 12,5X24X6,51
4
32 76 8 551 612
COLLAR BUSH1
