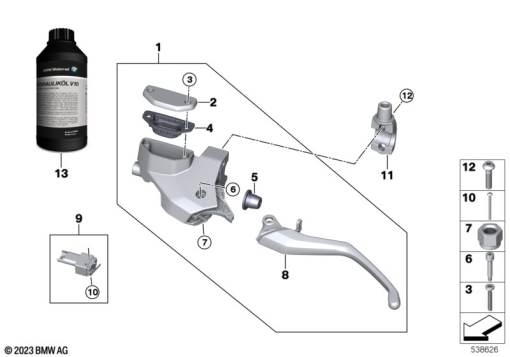

Parts List (19)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 32 72 7 105 722 | CLUTCH LEVER FITTING | - | |
32 72 7 105 750 | CLUTCH LEVER FITTINGAlternative for position 1 | - | ||
32 72 7 105 749 | CLUTCH LEVER FITTINGAlternative for position 1 | - | ||
| 2 | 32 72 7 105 742 | COVER HANDLEBAR FITTING | - | |
32 72 7 105 757 | COVER HANDLEBAR FITTINGAlternative for position 2 | - | ||
| 3 | 32 72 8 534 149 | PT SCREW - 4X22 | - | |
| 4 | 32 72 7 105 741 | RUBBER COVER | - | |
| 5 | 32 72 7 673 919 | DUST PROTECTION COLLAR | - | |
| 6 | 32 72 1 659 464 | SCREW | - | |
| 7 | 32 72 7 680 378 | SELF-LOCKING HEX NUT - M5-A2-70 | - | |
| 8 | 32 72 7 914 881 | SET: SET CLUTCH LEVERS | - | |
32 72 7 914 883 | SET: KIT CLUTCH LEVER ENDUROAlternative for position 8 | - | ||
32 72 7 914 882 | SET: KIT CLUTCH LEVER SHADOWAlternative for position 8 | - | ||
| 9 | 32 72 8 537 609 | SET: SET OF DUAL MICROSWITCHES | - | |
| 10 | 32 72 8 532 974 | PT SCREW - 2X22 | - | |
| 11 | 32 72 1 659 407 | PIPE CLAMP | - | |
32 72 7 921 698 | PIPE CLAMPAlternative for position 11 | - | ||
| 12 | 07 12 9 907 400 | ISA SCREW - M6X30-8.8-ZNNIV | - | |
| 13 | 21 52 2 455 540 | TRANSMISSION OIL HYSPIN V10 - 250 ML | - |
