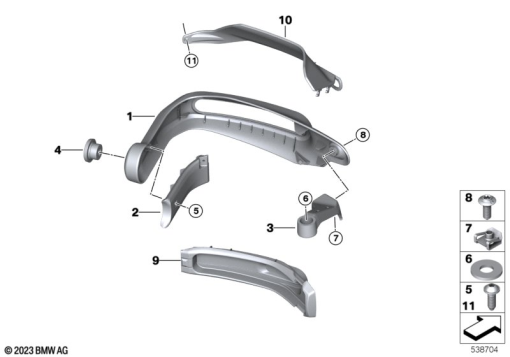

Parts List (21)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 63 7 922 059 | HAND PROTECTOR LEFT (to 03/24) | - | |
46635B497E3 | HAND PROTECTORAlternative for position 1 | - | ||
46 63 7 922 060 | HAND PROTECTOR RIGHT (to 03/24)Alternative for position 1 | - | ||
46635B497E4 | HAND PROTECTORAlternative for position 1 | - | ||
| 2 | 46635A73022 | COVER RIGHT (to 03/24) | - | |
46635B497F0 | COVER RIGHTAlternative for position 2 | - | ||
46635A73021 | COVER LEFTAlternative for position 2 | - | ||
| 3 | 46 63 7 922 057 | BRACKET, HAND PROTECTOR LEFT | - | |
46 63 7 922 058 | BRACKET, HAND PROTECTOR RIGHTAlternative for position 3 | - | ||
| 4 | 46 63 8 523 435 | BUSH | - | |
| 5 | 07 14 9 128 053 | FILLISTER HEAD SCREW - D=3,5X10MM | - | |
| 6 | 46 63 8 526 273 | WASHER | - | |
| 7 | 46 63 8 532 314 | C-CLIP NUT, SELF-LOCKING - M5 | - | |
| 8 | 46 63 8 568 781 | BODY SCREW WITHOUT SHOULDER - M5X16-A2-70 | - | |
| 9 | 46635A67605 | TRIM, HAND PROTECTION, LEFT | - | |
46635A67606 | TRIM, HAND PROTECTION, RIGHTAlternative for position 9 | - | ||
| 10 | 32715A71925 | HAND PROTECTION EXTENSION, LEFT | - | |
32715A71926 | HAND PROTECTION EXTENSION, RIGHTAlternative for position 10 | - | ||
32715A675E7 | HAND PROTECTION EXTENSION, LEFTAlternative for position 10 | - | ||
32715A675E8 | HAND PROTECTION EXTENSION, RIGHTAlternative for position 10 | - | ||
| 11 | 07 14 9 128 053 | FILLISTER HEAD SCREW - D=3,5X10MM | - |
