R1300GS 22 (KA1) | Frame, Fairing, Cases

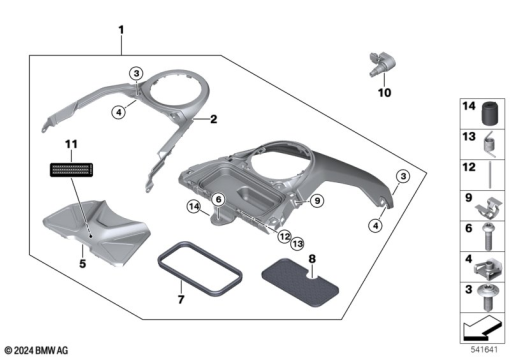

TANK COVER, CENTER
Diagram #46_2574 | 15 parts | 3 available in shop
100%
Parts List (15)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 63 1 683 198 | TANK COVER, CENTER | 1 | |
| 1 | 46635A688B9 | TANK COVER, CENTER | 1 | |
| 2 | 46 63 1 541 785 | COVER, CENTER | 1 | |
| 3 | 46 63 8 534 938 | BODY SCREW WITHOUT SHOULDER - M5X14-A2-70 | 1 | |
| 4 | 46 63 8 532 314 | C-CLIP NUT, SELF-LOCKING - M5 | 1 | |
| 5 | 46 63 1 541 483 | STORAGE COMPARTMENT COVER | 1 | |
| 6 | 07 12 9 909 321 | FILLISTER-HEAD SCREW - M6X25-8.8-MK | 1 | |
| 7 | 46 63 9 831 877 | SEAL ON STORAGE COMPARTMENT | 1 | |
| 8 | 46635A85D06 | INSERT | 1 | |
| 9 | 46 63 8 406 049 | CLIP | 1 | |
| 10 | 61 34 1 598 766 | USB CHARGING SOCKET - USB-A | 1 | |
| 11 | 71245A84327 | INFORMATION LABEL PAYLOAD | 1 | |
| 12 | 46 63 9 831 876 | AXLE STORAGE COMPARTMENT | 1 | |
| 13 | 46 63 9 831 879 | SPRING STORAGE COMPARTMENT AXLE | 1 | |
| 14 | 46 63 8 566 867 | ABSORBER | 1 |
