R1300GS 22 (KA1) | Frame, Fairing, Cases
FRONT AND REAR FOOTPEG

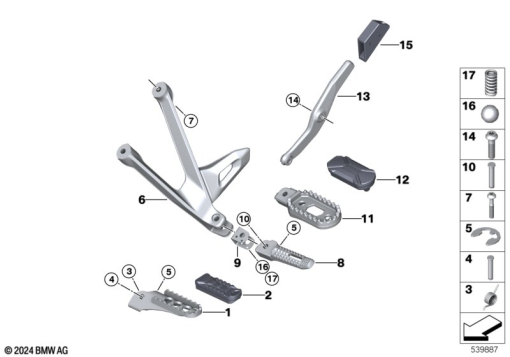

Diagram #46_2575 | 22 parts | 9 available in shop
100%
Parts List (22)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46715A76025 | DRIVER FOOTREST LEFT | 1 | |
| 1 | 46715A76026 | DRIVER FOOTREST RIGHT | 1 | |
| 2 | 46 71 8 530 633 | FOOTREST RUBBER | 1 | |
| 3 | 46 71 8 528 782 | RETAINER SPRING | 1 | |
| 4 | 46 71 9 446 331 | PIN - D=8MM / L=40MM | 1 | |
| 5 | 07 11 9 909 941 | CIRCLIP | 1 | |
| 6 | 46 71 7 923 217 | FOOT PEG BRACKET, REAR LEFT | 1 | |
| 6 | 46 71 7 923 218 | FOOT PEG BRACKET, RIGHT REAR | 1 | |
| 7 | 46 71 9 909 302 | FILLISTER-HEAD SCREW - M8X45-10.9 | 1 | |
| 8 | 46 71 7 708 633 | FOOTREST, REAR LEFT | 1 | |
| 8 | 46 71 7 708 634 | FOOTREST, REAR RIGHT | 1 | |
| 9 | 46 71 8 829 534 | STOP ELEMENT | 1 | |
| 10 | 46 71 7 675 691 | PIN - D=8MM/ L=37,5MM | 1 | |
| 11 | 46 71 7 108 051 | PASSENGER FOOT PEG, LEFT, COMFORT | 1 | |
| 11 | 46 71 7 108 052 | PASSENGER FOOT PEG, RIGHT, COMFORT | 1 | |
| 12 | 46 71 7 109 078 | FOOT PEG PAD | 1 | |
| 13 | 46 71 7 923 483 | CASE CARRIER, LEFT LOWER | 1 | |
| 13 | 46 71 7 923 484 | CASE CARRIER, RIGHT LOWER | 1 | |
| 14 | 07 12 9 909 321 | FILLISTER-HEAD SCREW - M6X25-8.8-MK | 1 | |
| 15 | 46 71 8 556 271 | 0.03 | 1 | |
| 16 | 07 11 9 905 155 | BALL - 6,35MM | 1 | |
| 17 | 46 71 8 392 689 | COMPRESSION SPRING | 1 |
