R1300GS 22 (KA1) | Frame, Fairing, Cases

CONTROL UNIT COVER

Diagram #46_2573 | 4 parts | 2 available in shop

100%

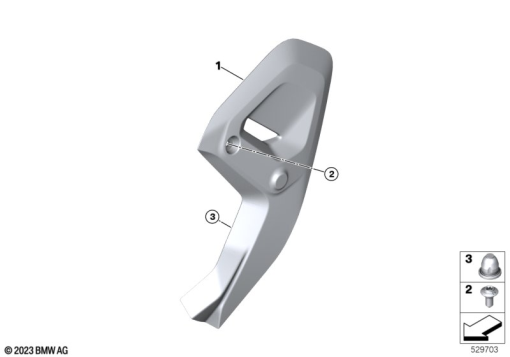

R1300GS 22 (KA1) CONTROL UNIT COVER exploded view parts diagram

Parts List (4)

#Part NumberDescriptionQty
1
46 63 1 541 497
TRIM, LEFT1
1
46 63 1 541 498
TRIM, RIGHT1
2
46 63 8 521 656
BODY SCREW WITH SHOULDER - M6X14,5-A2-701
3
46 63 7 691 016
SNAP-LOCK COUPLING1
