R1300GS 22 (KA1) | Frame, Fairing, Cases

KNEE PROTECTOR

Diagram #46_2572 | 5 parts

100%

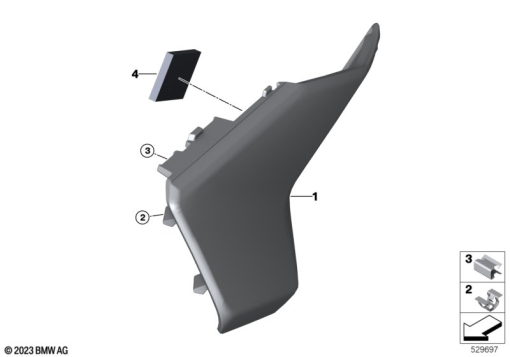

R1300GS 22 (KA1) KNEE PROTECTOR exploded view parts diagram

Parts List (5)

#Part NumberDescriptionQty
1
46 63 1 541 495
KNEE PROTECTION, LEFT1
1
46 63 1 541 496
KNEE PROTECTION, RIGHT1
2
46 63 8 406 049
CLIP1
3
46 63 8 521 396
MOUNTING CLIP1
4
46 63 9 444 373
HOOK&LOOP FASTENER - 25X40MM1
