R1300GS 22 (KA1) | Frame, Fairing, Cases
SIDE TRIM PANEL

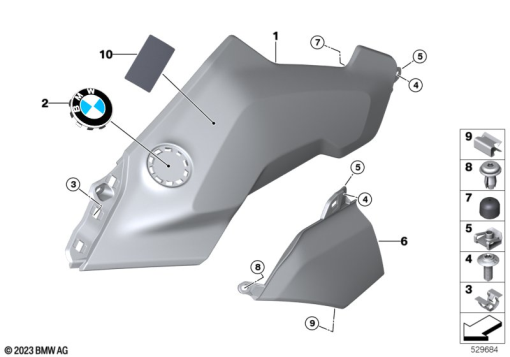

Diagram #46_2571 | 11 parts | 5 available in shop
100%
Parts List (11)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 63 7 921 959 | SIDE TRIM PANEL LEFT - ROHTEIL/BLANK | 1 | |
| 1 | 46 63 7 921 960 | SIDE TRIM PANEL RIGHT - ROHTEIL/BLANK | 1 | |
| 2 | 36 13 6 850 834 | WHEEL CENTER CAP WITH CHROME RING - BMW | 1 | |
| 3 | 46 63 8 406 049 | CLIP | 1 | |
| 4 | 46 63 8 534 938 | BODY SCREW WITHOUT SHOULDER - M5X14-A2-70 | 1 | |
| 5 | 46 63 8 532 314 | C-CLIP NUT, SELF-LOCKING - M5 | 1 | |
| 6 | 46 63 7 921 965 | SIDE TRIM PANEL BOTTOM LEFT - ROHTEIL/BLANK | 1 | |
| 6 | 46 63 7 921 966 | SIDE TRIM PANEL BOTTOM RIGHT - ROHTEIL/BLANK | 1 | |
| 7 | 46 63 7 726 130 | BUMP STOP | 1 | |
| 8 | 07145A42E91 | EXPANDING RIVET | 1 | |
| 9 | 46 63 8 521 396 | MOUNTING CLIP | 1 |
