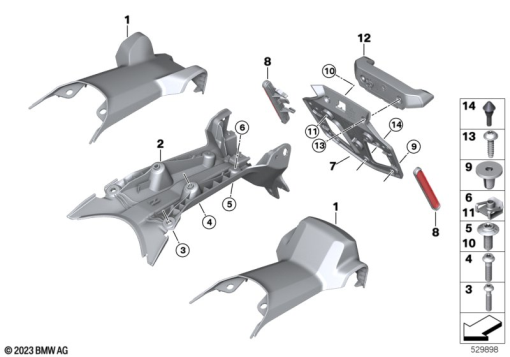

Parts List (15)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 62 1 541 512 | COVER, LICENSE PLATE BRACKET | 1 | |
| 1 | 46 62 1 541 469 | COVER, LICENSE PLATE BRACKET | 1 | |
| 2 | 46 62 9 443 214 | LICENSE-PLATE CARRIER | 1 | |
| 3 | 07 12 9 908 466 | FILLISTER-HEAD SCREW - M8X40-8.8-MK | 1 | |
| 4 | 07 12 9 909 321 | FILLISTER-HEAD SCREW - M6X25-8.8-MK | 1 | |
| 5 | 46 63 8 534 938 | BODY SCREW WITHOUT SHOULDER - M5X14-A2-70 | 1 | |
| 6 | 46 63 8 532 314 | C-CLIP NUT, SELF-LOCKING - M5 | 1 | |
| 7 | 63 26 7 105 882 | LICENSE-PLATE CARRIER | 1 | |
| 8 | 63 26 7 105 890 | REFLECTOR, RED | 1 | |
| 9 | 51 18 1 966 959 | PLUG-IN NUT | 1 | |
| 4 | 07 14 7 137 416 | FILLISTER HEAD SELF-TAPPING SCREW - ST4,8X16 | 1 | |
| 10 | 46 63 8 534 938 | BODY SCREW WITHOUT SHOULDER - M5X14-A2-70 | 1 | |
| 11 | 46 63 8 532 314 | C-CLIP NUT, SELF-LOCKING - M5 | 1 | |
| 12 | 63 26 7 105 889 | LICENSE PLATE LAMP, LED | 1 | |
| 13 | 07145A848F3 | OVAL-HEAD SCREW | 1 |
