R1300GS 22 (KA1) | Frame, Fairing, Cases

AIR DUCTING, RADIATOR

Diagram #46_2568 | 5 parts

100%

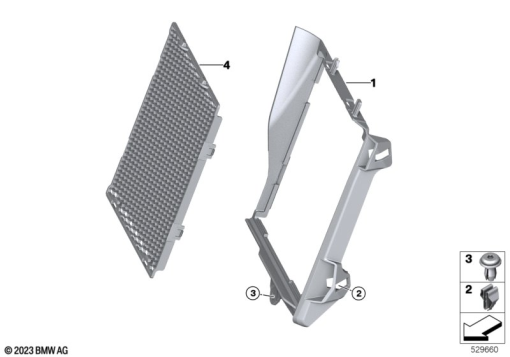

R1300GS 22 (KA1) AIR DUCTING, RADIATOR exploded view parts diagram

Parts List (5)

#Part NumberDescriptionQty
1
46 63 1 541 477
AIR DUCT, LEFT1
1
46 63 1 541 478
AIR DUCT, RIGHT1
2
07 14 8 542 040
MOUNTING CLIP1
3
07145A42E91
EXPANDING RIVET1
4
46 63 1 683 109
PROTECTIVE GRILLE FOR RADIATOR1
