R1300GS 22 (KA1) | Frame, Fairing, Cases

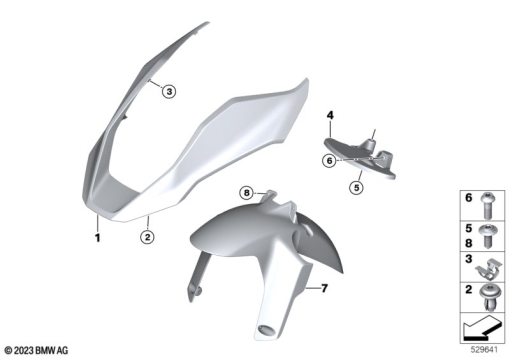

FRONT WHEEL FENDER
Diagram #46_2567 | 8 parts | 2 available in shop
100%
Parts List (8)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 61 7 921 922 | FRONT WHEEL COVER TOP - ROHTEIL/BLANK | 1 | |
| 2 | 07145A42E91 | EXPANDING RIVET | 1 | |
| 3 | 46 63 8 406 049 | CLIP | 1 | |
| 4 | 46 61 1 541 475 | FORK PROTECTION COVER | 1 | |
| 5 | 46 63 8 534 943 | BODY SCREW WITHOUT SHOULDER - M5X14 MK | 1 | |
| 6 | 07 12 9 907 382 | FILLISTER-HEAD SCREW - M8X25-8.8-ZNNIV | 1 | |
| 7 | 46 61 1 541 474 | FRONT WHEEL COVER BOTTOM | 1 | |
| 8 | 46 63 8 534 943 | BODY SCREW WITHOUT SHOULDER - M5X14 MK | 1 |
