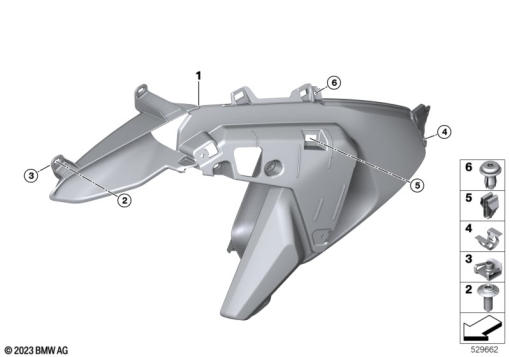

R1300GS 22 (KA1) | Frame, Fairing, Cases
AIR-DISCHARGE DUCT
Diagram #46_2569 | 7 parts | 2 available in shop
100%
Parts List (7)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 63 1 541 481 | EXHAUST DUCT LEFT | 1 | |
| 1 | 46 63 1 541 482 | EXHAUST DUCT RIGHT | 1 | |
| 2 | 46 63 8 534 938 | BODY SCREW WITHOUT SHOULDER - M5X14-A2-70 | 1 | |
| 3 | 46 63 8 532 314 | C-CLIP NUT, SELF-LOCKING - M5 | 1 | |
| 4 | 46 63 8 406 049 | CLIP | 1 | |
| 5 | 07 14 8 542 040 | MOUNTING CLIP | 1 | |
| 6 | 07145A42E91 | EXPANDING RIVET | 1 |
