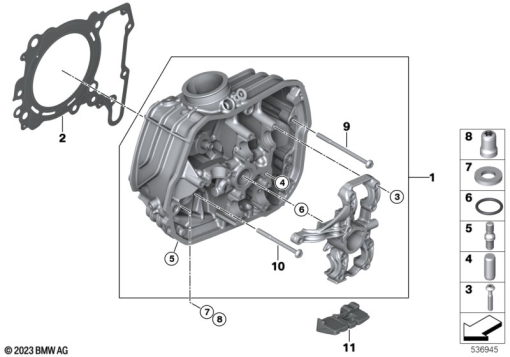

Parts List (14)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 12 7 105 473 | CYLINDER HEAD LEFT | - | |
11 12 7 105 474 | CYLINDER HEAD RIGHTAlternative for position 1 | - | ||
| 2 | 11 12 7 105 471 | CYLINDER HEAD GASKET LEFT | - | |
11 12 7 105 472 | CYLINDER HEAD GASKET RIGHTAlternative for position 2 | - | ||
| 3 | 07 12 9 907 399 | FILLISTER-HEAD SCREW - M6X35-8.8-ZNNIV | - | |
| 4 | 07 11 9 942 074 | DOWEL PIN - 6M6X14 | - | |
| 5 | 11 12 8 529 820 | CENTERING PIN | - | |
| 6 | 07 11 9 907 874 | O-RING - 24X3 | - | |
| 7 | 11 12 1 464 026 | WASHER - 10,5X20X3 | - | |
| 8 | 11 12 7 711 063 | NUT - M10X1,5 | - | |
| 9 | 07 12 9 907 448 | ISA SCREW - M6X95 | - | |
| 10 | 07 12 9 907 394 | FILLISTER-HEAD SCREW - M6X75-8.8 | - | |
| 11 | 11 12 7 105 485 | ANTI-TWIST LOCK LEFT | - | |
11 12 7 105 486 | ANTI-TWIST LOCK RIGHTAlternative for position 11 | - |
