R1300GS 22 (KA1) | Engine

HOOD, BLACK

Diagram #11_9829 | 4 parts

100%

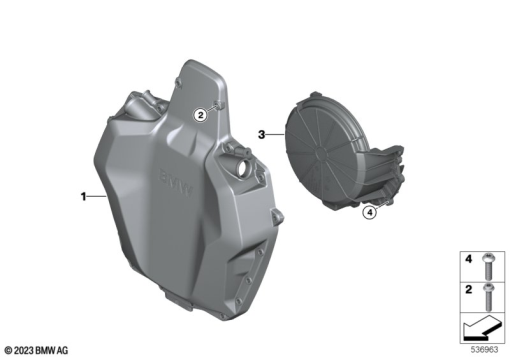

R1300GS 22 (KA1) HOOD, BLACK exploded view parts diagram

Parts List (4)

#Part NumberDescriptionQty
1
11 14 7 105 368
HOUSING COVER BLACK FRONT1
2
11 14 8 563 763
ISA SCREW - M6X30 - AL1
3
11 14 7 105 361
COVER, CLUTCH1
4
07 12 9 907 409
FILLISTER-HEAD SCREW - M5X201
