R1300GS 22 (KA1) | Electrical System

BLIND CAPS

Diagram #61_5909 | 3 parts

100%

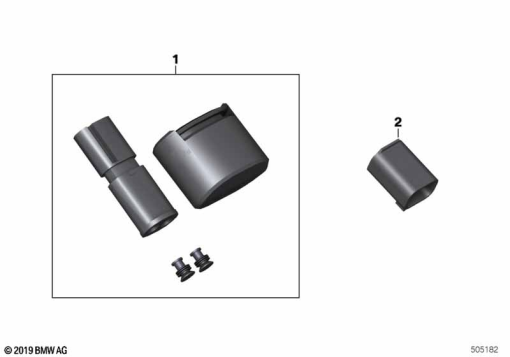

R1300GS 22 (KA1) BLIND CAPS exploded view parts diagram

Parts List (3)

#Part NumberDescriptionQty
1
77 53 8 526 536
SET: SET OF END CAPS, WIRING HARNESS1
2
61 13 8 367 135
BLIND CAP - 3 POL.1
2
61 13 7 106 032
BLIND CAP WIRING HARNESS - 2 POL.1
