R1300GS 22 (KA1) | Electrical System

OBD BUSHING HOUSING

Name: Dapper Motor
Address: Haarlem, Noord-Holland, NL
Telephone: +31232077747
Price range: €€€

Diagram #61_5912 | 4 parts

100%

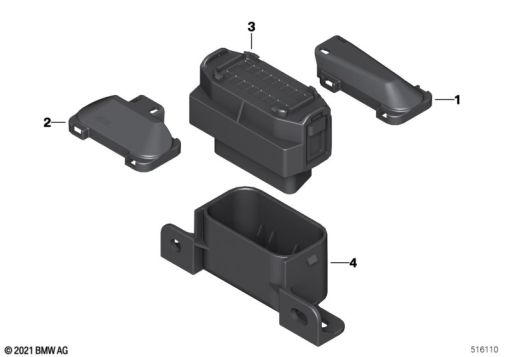

R1300GS 22 (KA1) OBD BUSHING HOUSING exploded view parts diagram

Parts List (4)

#	Part Number	Description	Qty
1	61 13 8 549 905	ABDECKKAPPE `OBD` - VAR. 1	-
	61 13 1 367 599	CABLE TIE - L=200MM/B=3,6MMAlternative for position 1	-
3	61 13 8 549 907	OBD BUSHING HOUSING	-
4	61 13 8 549 906	PLUG CAP OBD - VAR. 1	-

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
