R1300GS 22 (KA1) | Electrical System

EXPANDING RIVET

Diagram #61_5853 | 4 parts

100%

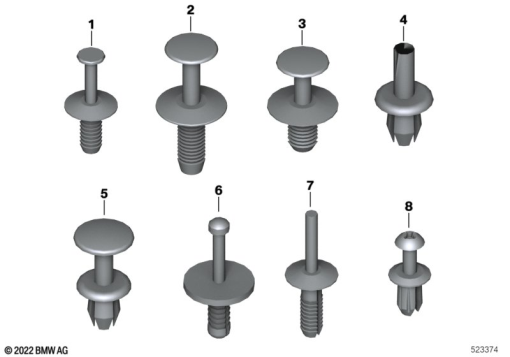

R1300GS 22 (KA1) EXPANDING RIVET exploded view parts diagram

Parts List (4)

#Part NumberDescriptionQty
1
07145A42E91
EXPANDING RIVET-
51 11 1 908 077
EXPANDING RIVET - D = 6MMAlternative for position 1-
5
07 14 7 136 172
EXPANDING RIVET-
8
51 16 8 197 908
EXPANDING RIVET-

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
