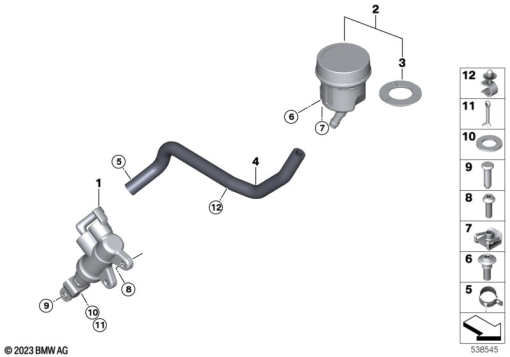

REAR BRAKE MASTER CYLINDER
Diagram #34_3424 | 12 parts | 2 available in shop
100%
Parts List (12)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 34 31 1 642 041 | REAR BRAKE MASTER CYLINDER | 1 | |
| 2 | 34 31 1 642 106 | EXPANSION TANK | 1 | |
| 3 | 34 31 1 642 446 | RUBBER COVER | 1 | |
| 4 | 34 31 1 642 497 | HOSE | 1 | |
| 5 | 34 31 8 356 966 | HOSE CLAMP - 12.0 | 1 | |
| 6 | 46 63 8 521 654 | BODY SCREW WITH SHOULDER - M5X17,5-A2-70 | 1 | |
| 7 | 46 63 8 532 314 | C-CLIP NUT, SELF-LOCKING - M5 | 1 | |
| 8 | 07 12 9 907 402 | FILLISTER-HEAD SCREW - M6X20-8.8-ZNNIV | 1 | |
| 9 | 07 11 9 906 902 | PIN - 6X20 | 1 | |
| 10 | 07 11 9 905 218 | WASHER - 6-200 HV-A4 | 1 | |
| 11 | 07 11 9 905 447 | SPLIT PIN - 1,6X16 | 1 | |
| 12 | 34 31 9 457 452 | CLIP - D12 | 1 |
