R1300GS 22 (KA1) | Brakes

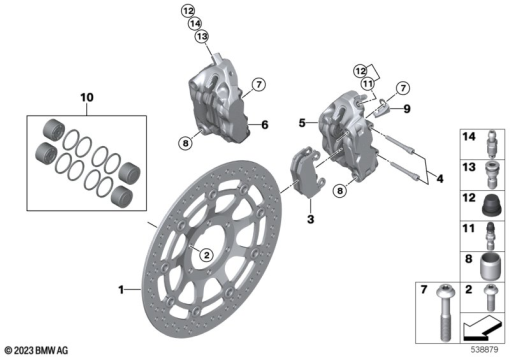

FRONT WHEEL BRAKE, FORGED ENDURO WHEELS
Diagram #34_3433 | 17 parts | 9 available in shop
100%
Parts List (17)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 34 11 7 105 037 | BRAKE DISK | 1 | |
| 2 | 07 12 9 907 382 | FILLISTER-HEAD SCREW - M8X25-8.8-ZNNIV | 1 | |
| 3 | 34 11 7 108 409 | SET: SET OF BRAKE PADS FRONT | 1 | |
| 3 | 83 12 2 296 187 | 83 12 2 296 187 | 2 | |
| 4 | 34 11 7 108 411 | SET: KIT MOUNTING ELEMENT BRAKE PADS FRONT | 1 | |
| 5 | 34 11 7 108 407 | BRAKE CALIPER LEFT | 1 | |
| 5 | 34 11 8 867 071 | BRAKE CALIPER, LEFT | 1 | |
| 6 | 34 11 7 108 408 | BRAKE CALIPER RIGHT | 1 | |
| 6 | 34 11 8 867 072 | CALIPER RIGHT | 1 | |
| 7 | 07 11 9 907 389 | FILLISTER-HEAD SCREW - M10X60-8.8 | 1 | |
| 8 | 07 14 1 642 512 | DOWEL - 12,5X10,5X13,5 | 1 | |
| 9 | 34 52 8 532 553 | CABLE GUIDE | 1 | |
| 10 | 34 11 7 108 410 | SET: KIT BRAKE PISTON | 1 | |
| 11 | 34 32 8 559 191 | SCREW PLUG WITH VENTILATION | 1 | |
| 12 | 34 21 2 314 001 | 34 21 2 314 001 | 1 | |
| 13 | 34 32 8 549 328 | VENTILATION BOLT | 1 | |
| 14 | 34 11 8 520 872 | VENT SCREW | 1 |
