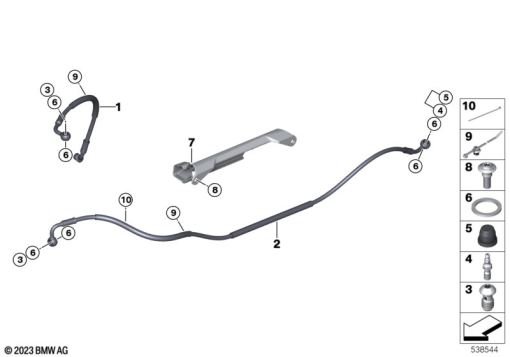

Parts List (10)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 34 32 9 446 143 | BRAKE HOSE FOR CONTROL CIRCUIT, REAR | 1 | |
| 2 | 34 32 9 446 142 | BRAKE CIRCUIT HOSE, REAR | 1 | |
| 3 | 34 32 1 599 229 | HOLLOW BOLT - M10X1 | 1 | |
| 4 | 34 32 8 559 191 | SCREW PLUG WITH VENTILATION | 1 | |
| 5 | 34 21 2 314 001 | 34 21 2 314 001 | 1 | |
| 6 | 07 11 9 963 072 | GASKET RING - A10X13,5-CU | 1 | |
| 7 | 34 32 7 921 887 | COVER | 1 | |
| 8 | 46 63 8 521 653 | BODY SCREW WITH SHOULDER - M5X14,5-A2-70 | 1 | |
| 9 | 61 13 6 914 992 | CABLE STRAP WITH BRACKET - Ø=7,9 / L=200 | 1 | |
| 10 | 61 13 1 367 599 | CABLE TIE - L=200MM/B=3,6MM | 1 |
