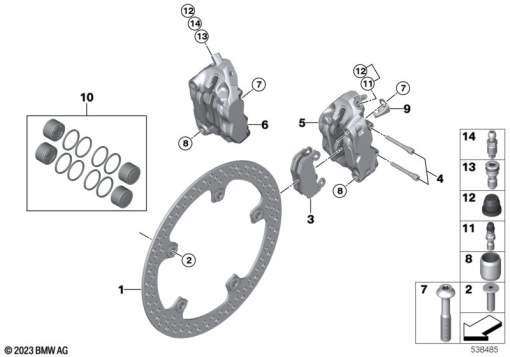

Parts List (17)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 34 11 1 627 690 | BRAKE DISK | - | |
| 2 | 34 11 7 700 989 | COUNTERSUNK SCREW - M8X27-10.9 MK | - | |
| 3 | 34 11 7 108 409 | SET: SET OF BRAKE PADS FRONT | - | |
83 12 2 296 187 | 83 12 2 296 187Alternative for position 3 | 2 | ||
| 4 | 34 11 7 108 411 | SET: KIT MOUNTING ELEMENT BRAKE PADS FRONT | - | |
| 5 | 34 11 7 108 407 | BRAKE CALIPER LEFT | - | |
34 11 8 867 071 | BRAKE CALIPER, LEFTAlternative for position 5 | - | ||
| 6 | 34 11 7 108 408 | BRAKE CALIPER RIGHT | - | |
34 11 8 867 072 | CALIPER RIGHTAlternative for position 6 | - | ||
| 7 | 07 11 9 907 389 | FILLISTER-HEAD SCREW - M10X60-8.8 | - | |
| 8 | 07 14 1 642 512 | DOWEL - 12,5X10,5X13,5 | - | |
| 9 | 34 52 8 532 553 | CABLE GUIDE | - | |
| 10 | 34 11 7 108 410 | SET: KIT BRAKE PISTON | - | |
| 11 | 34 32 8 559 191 | SCREW PLUG WITH VENTILATION | - | |
| 12 | 34 21 2 314 001 | 34 21 2 314 001 | - | |
| 13 | 34 32 8 549 328 | VENTILATION BOLT | - | |
| 14 | 34 11 8 520 872 | VENT SCREW | - |
