Parts List (15)

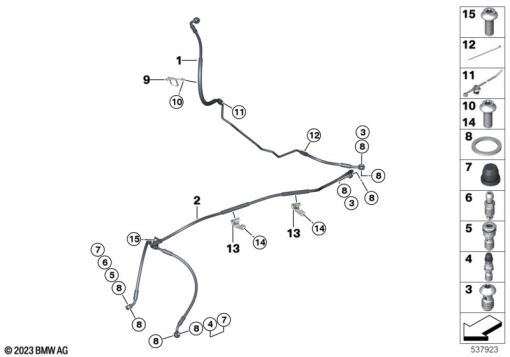

| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 34 32 9 446 145 | BRAKE HOSE CONTROL CIRCUIT FRONT | 1 | |
| 2 | 34 32 9 446 144 | BRAKE HOSE FOR FRONT BRAKE CIRCUIT | 1 | |
| 3 | 34 32 1 599 229 | HOLLOW BOLT - M10X1 | 1 | |
| 4 | 34 32 8 559 191 | SCREW PLUG WITH VENTILATION | 1 | |
| 5 | 34 32 8 549 328 | VENTILATION BOLT | 1 | |
| 6 | 34 11 8 520 872 | VENT SCREW | 1 | |
| 7 | 34 21 2 314 001 | 34 21 2 314 001 | 1 | |
| 8 | 07 11 9 963 072 | GASKET RING - A10X13,5-CU | 1 | |
| 9 | 32 72 7 105 872 | GUIDE STRAP | 1 | |
| 10 | 07 12 9 907 413 | TORX SCREW - M5X12-8.8-ZNNIV | 1 | |
| 11 | 61 13 6 914 992 | CABLE STRAP WITH BRACKET - Ø=7,9 / L=200 | 1 | |
| 12 | 61 13 1 367 599 | CABLE TIE - L=200MM/B=3,6MM | 1 | |
| 13 | 34 32 7 105 924 | HOLDER | 1 | |
| 14 | 07 12 9 907 413 | TORX SCREW - M5X12-8.8-ZNNIV | 1 | |
| 15 | 07 12 9 908 404 | FILLISTER-HEAD SCREW - M6X16-8.8 MK | 1 |
