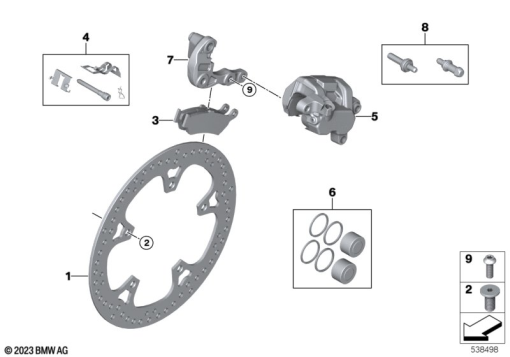

Parts List (11)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 34 21 1 627 694 | BRAKE DISK | - | |
| 2 | 07 14 1 668 741 | COUNTERSUNK SCREW - M8X18 10.9 MK | - | |
| 3 | 34 21 7 108 470 | SET: BRAKE PADS KIT | - | |
83 12 2 296 187 | Brake Pad Paste - 5 mlAlternative for position 3 | - | ||
| 4 | 34 21 7 108 471 | SET: KIT MOUNTING ELEMENT BRAKE PADS | - | |
| 5 | 34 21 7 108 469 | BRAKE CALIPER REAR | - | |
34 21 8 856 657 | BRAKE CALIPERAlternative for position 5 | - | ||
| 6 | 34 21 7 108 473 | SET: KIT BRAKE PISTON | - | |
| 7 | 34 21 7 108 474 | BRAKE CALIPER MOUNTING BRACKET | - | |
| 8 | 34 21 2 330 312 | REPAIR KIT, RUBBER COVER | - | |
| 9 | 36 31 9 908 565 | FILLISTER-HEAD SCREW - M10X30 | - |
